Using Shiro Remember Me and Automatic Login: Fixing a deleteMe Cookie

Table of contents

Article body

If I am going to do this, I might as well do it thoroughly and make the effort worthwhile!

Before we begin: anyone who has learned JSP knows that cookies are enough to implement this.

Configure the cookie in shiro.xml.

1. Configure the cookie name, lifetime, and other settings.

<bean id="cookieRememberMe" class="org.apache.shiro.web.servlet.simpleCookie">
  <constructor-arg name="name" value="rememberMeAfter"/>
  <!--Cookie lifetime-->
  <property name="maxAge" value="2592000"/>
  <!--Whether the request is an htt request, to prevent malicious attacks-->
  <property name="httpOnly" value="true"/>
</bean>

2. Inject the cookie into cookieRememberManager.

<bean id="cookieManager" class="org.apache.shiro.web.mgt.CookieRememberMeManager">
  <property name="cookie" ref="cookieRememberMe"/>
  <!--Cookie encryption. The value below is an OGNL expression: T denotes a class, followed by its fully qualified name.method(arguments)-->
  <perperty name="cipherKey"
   value="#{T(org.apache.shiro.codec.Base64).decode('4AvVhmFLUs0KTA3Kprsdag==')}"/>
</bean>

3. Add cookieManager to securityManager.

<bean id="securityManager" class=".shiro.web.mgt.DefaultWebSecurityManager"
        <!--1. After entering securityManager, authentication and authorization run in the realm,
        so reference our custom realm here-->
        <property name="realm" ref="customRealm"/>
        <!--2. Configure the remember-me/automatic-login option-->
        <property name="rememberMeManager" ref="cookieManager"/>

</bean>

With the basic configuration done, add one line before subject.login(token), based on whether the user selected remember me/automatic login:

token.setRememberMe(true/false). That essentially completes the flow.

A Major Problem:

Testing showed that the cookie did not work. After closing and reopening the browser, I still had to log in. The server reported no errors.

Investigation:

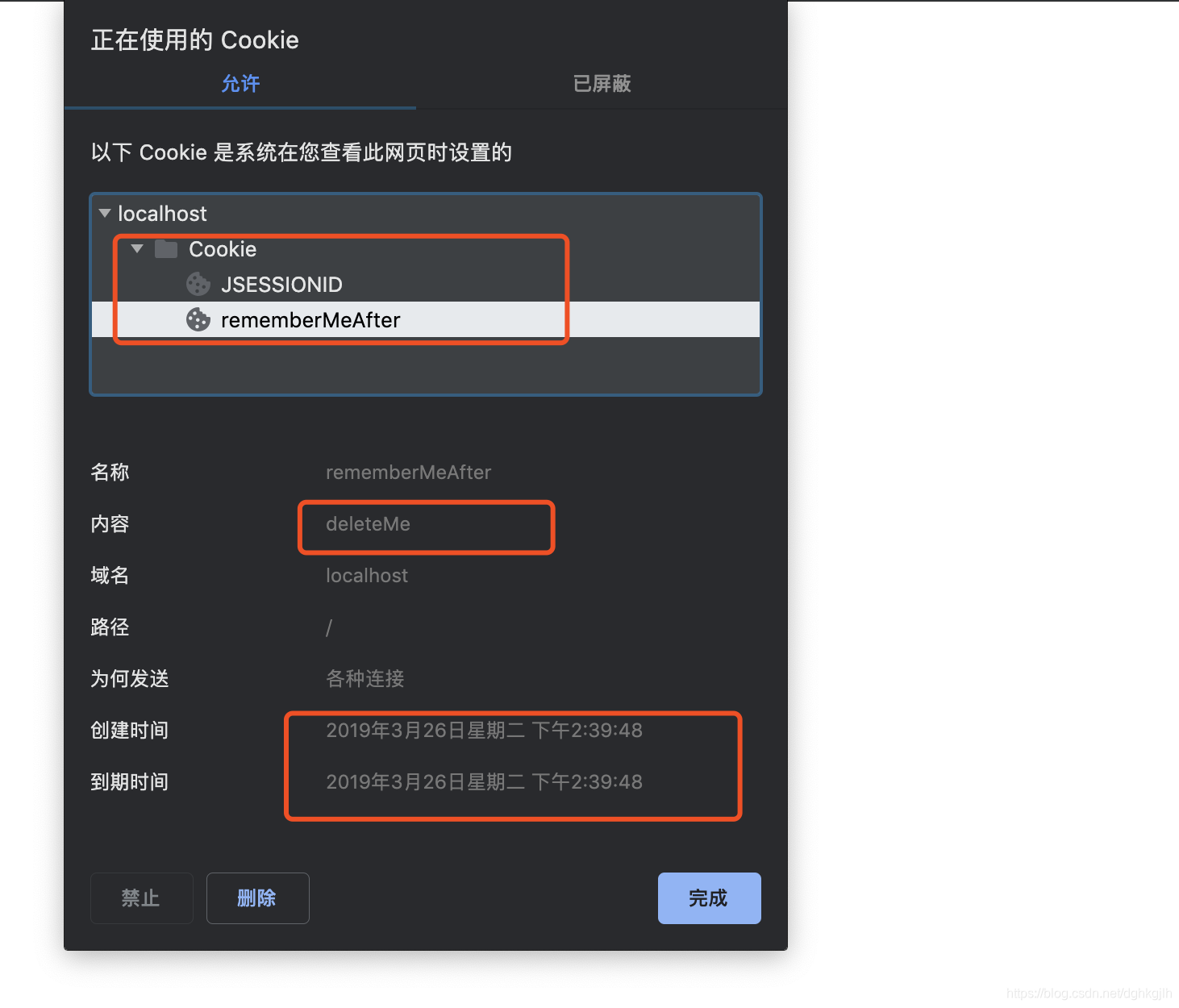

 1. First, check whether the server returns a cookie to the browser. Locate the cookie in Chrome, as shown below:

The cookie does have the name I configured, so shiro.xml appears correct. Notice, however, that its creation and expiration times are identical, and its content is wrong: deleteme.

2. I searched forum posts and blogs. Only one blogger had the same problem, and nobody had replied.

3. With no other option, I read the source code. Here is my investigation.

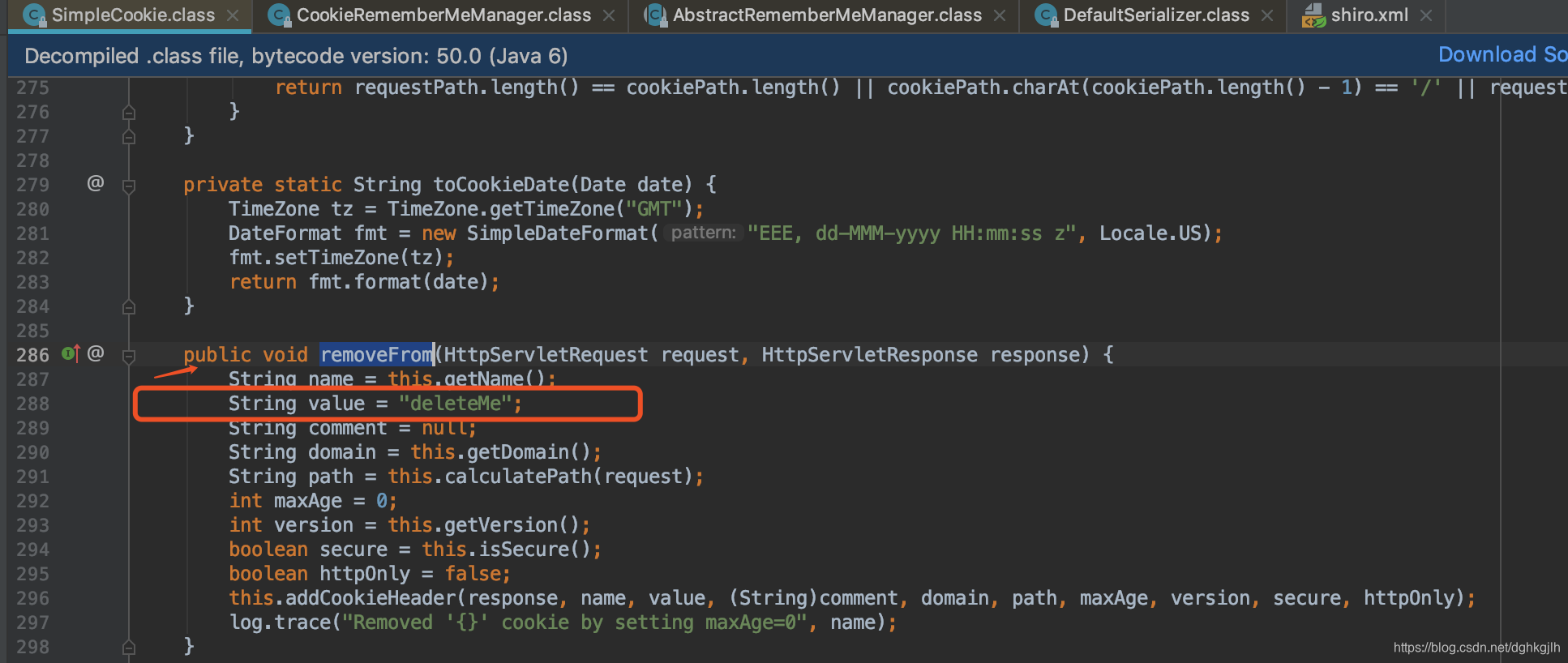

Step one: since the cookie contained deleteme, something must have gone wrong and reset it. I looked in simpleCookie and found the relevant code.

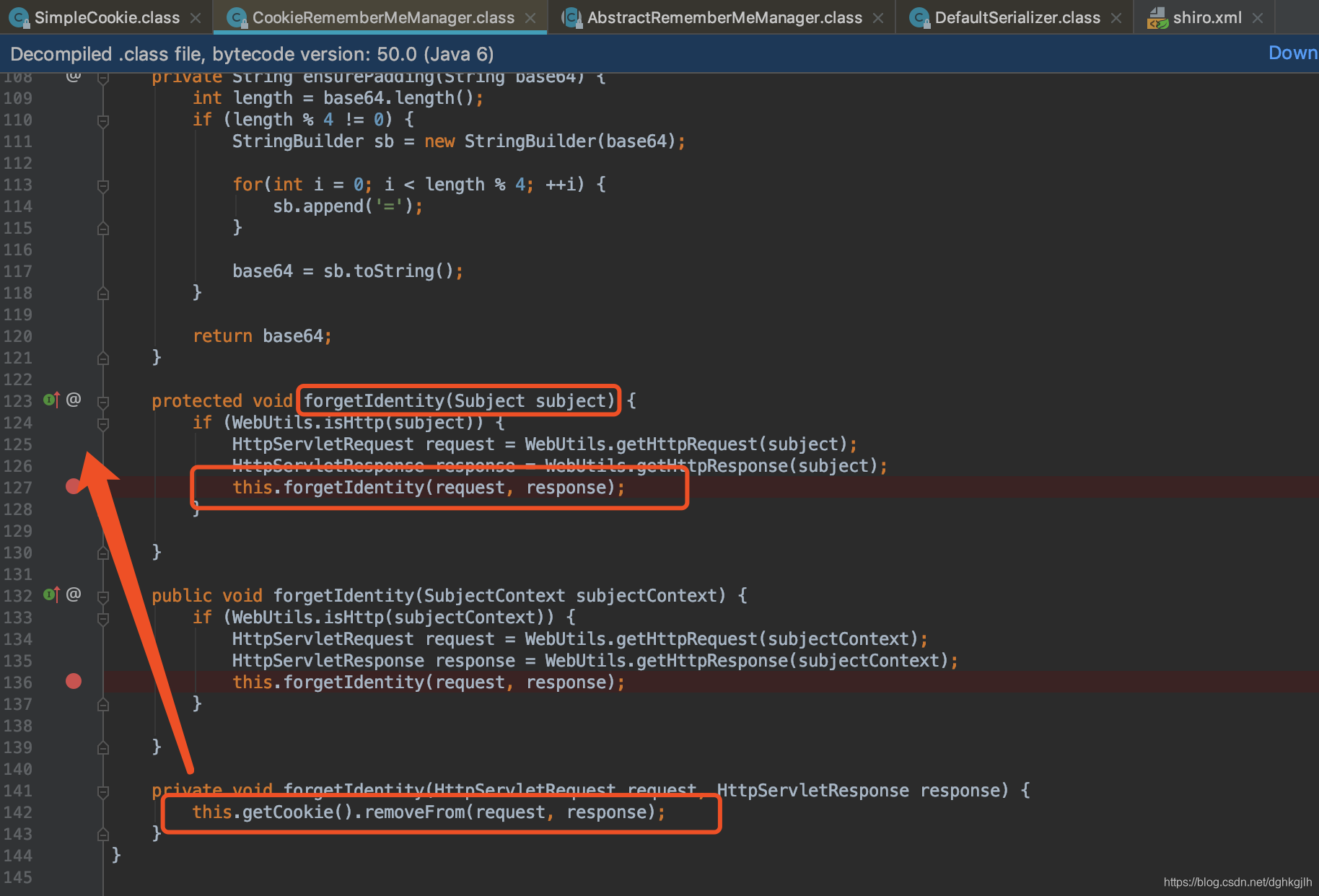

Step two: removeForm sets the value, but where is that method called? It was not in simpleCookie. Since shiro.xml delegates simpleCookie management to cookieRememberManager, I searched there and found it.

forgetIdentity calls removeForm. Mine should use the first overload because
authentication passes a Subject. But where is forgetIdentity called?

Step three: CookieRememberMeManager did not call it, so I searched its abstract superclass, AbstractRememberManager. Its onFailedLogin method calls it. I set a breakpoint, but execution never entered onFailedLogin. I was baffled—what now?

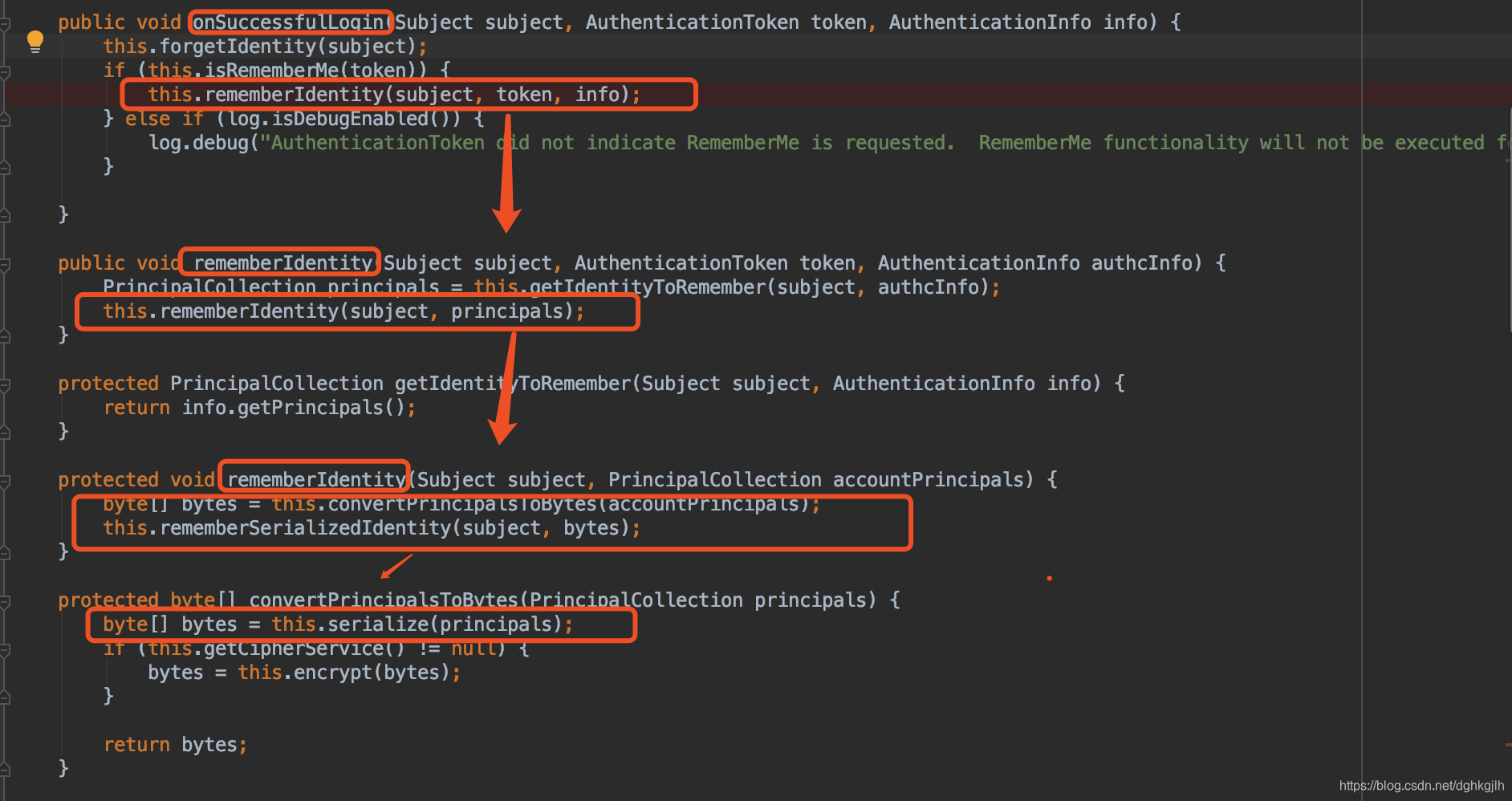

Step four: after looking through a pile of methods whose purpose I did not understand, I found onSuccessfulLogin and set a breakpoint. Execution did enter this method.

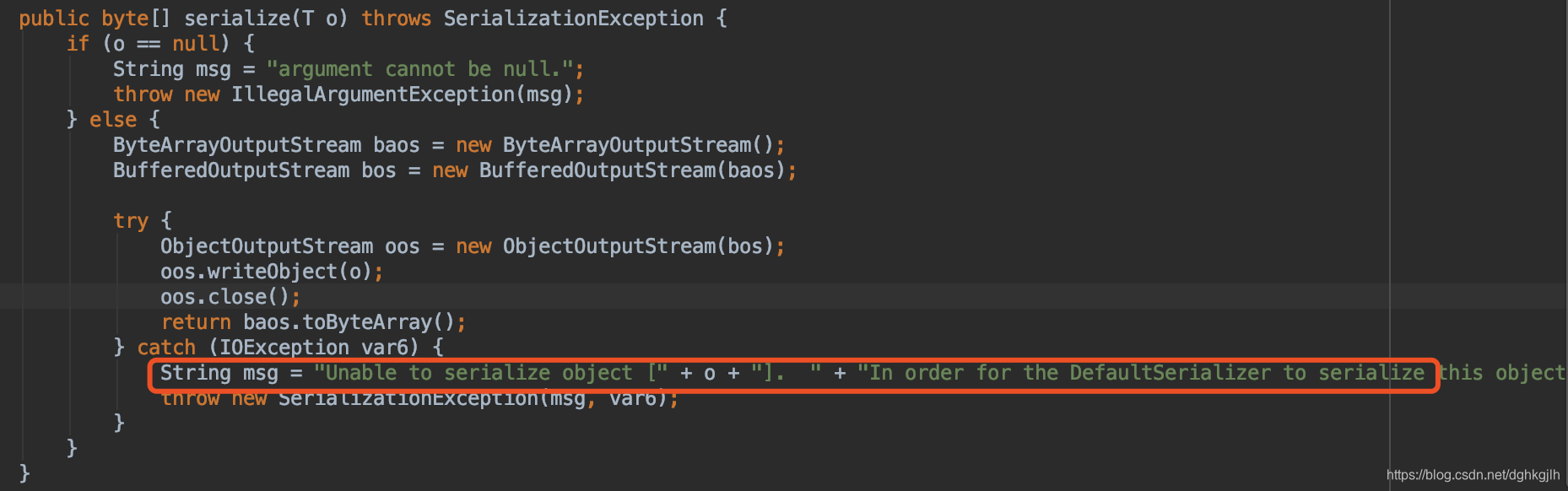

These steps execute in sequence. I followed the breakpoints to this.serialize in converPrincipalsToBytes. Stepping into it revealed a caught exception; the try block above performs stream operations.

Seeing that message and the User entity at the breakpoint, I understood immediately: my User class did not implement Serializable. I added the interface at once. My custom realm passes a User object during authentication. Passing a String username would not cause this issue, because String implements Serializable. A cookie is returned to the browser and saved on the user’s disk, so what the server sends involves file I/O and stream operations. For an object to participate in stream input and output, it must implement Serializable. I only understood this after reading the source—rather embarrassing!

SimpleAuthenticationInfo info = new SimpleAuthenticationInfo(authUser, password,
getName());

Step five: I tested again, closing and reopening the browser. I could now log in directly without authentication. The troublesome problem was finally solved.

This pitfall gave me a much clearer understanding of Shiro.

After resolving it, I organized Shiro’s rememberMe workflow as follows.

Workflow:

1. Shiro first deletes the cookie obtained from the browser and initializes a cookie containing deleteme.

2. After the realm authenticates successfully, Shiro considers the user logged in and calls onSuccessfulLogin. DefaultSerializer writes the principal object to a byte array through ObjectOutputStream.

3. If step two throws no exception, rememeberSerializedIdentity in CookieRememberMeManager is called. Otherwise, the initialized deleteMe cookie is returned, and the original cookie is already gone because step one deleted it.

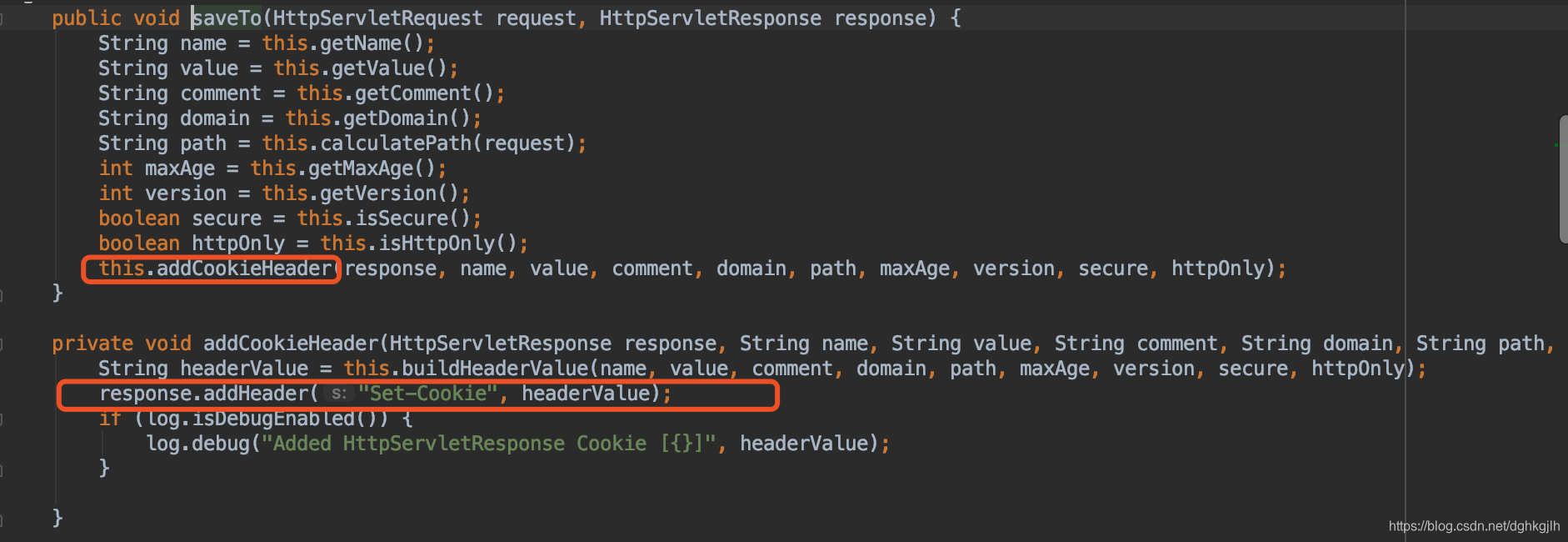

4. rememeberSerializedIdentity calls cookie.saeTo to set the cookie and return it to the browser, as shown below:

That completes the small rememberMe feature.

 This series does not provide the complete related code, but I have integrated Shiro into a frontend/backend project. If you need it, the code is here.
